Products Description
Parameter
|
Parameter category
|
Specific parameters
|
remark
|
||
|
Note: In the above table box, " red font is for precautions, blue font is for (configuration changes need to be modified and replaced)"
|
|
|
||
|
Basic Information
|
The name of the model
|
ZQB100-H Series
|
||
|
|
Vehicle type
|
All-terrain vehicles 4×4 farmer vehicles
|
||
|
|
Drive type
|
Part-time 4WD/2WD/4WD
|
||
|
|
Directional manipulation
|
Steering wheel type
|
||
|
Driving controls
|
direction
|
Steering wheel type
|
||
|
|
gears
|
Upshift/downshift backward (right-handed)
|
||
|
|
advance
|
External independent reverser / Forward (right-handed)
|
||
|
|
retrogression
|
External independent reverse/reverse (right-handed)
|
||
|
|
High and low speed
|
Front-mounted, forward-high-speed/backward-low-speed (right-handed) 2WD 4WD universal
|
||
|
|
Post-afterburner
|
Rear-mounted, forward-low-speed/backward-high-speed (right-handed) 2WD only
|
||
|
|
drive
|
Part-time 4WD / Forward 2WD / Rear 4WD (Right Hand)
|
||
|
|
brake
|
Front and rear one-to-four drum brakes (right foot brake)
|
||
|
|
Parking
|
1-in-2 rear oil drum brake/wire cable (left hand brake)
|
||
|
|
gas pedal
|
Throttle accelerator pedal (right foot)
|
||
|
Drive system
|
Transmission mode
|
Mechanical transmission: The power of the engine passes through the transmission, transfer case, propeller shaft, final reducer, differential and half shaft.
|
||
|
|
Front-mounted transmission type
|
Foot gear/gearbox (high and low gear) / 2WD/4WD can be used
|
||
|
|
Rear axle shift type
|
Manual transmission (high and low gear) / rear-wheel drive 2WD only
|
||
|
|
Transfer case type
|
Four-wheel drive transfer case (2WD/4WD) can be used manually and freely
|
||
|
|
Engine → Clutch/torque converter → Transmission → Transfer case → Drive shaft → Front/rear axle → Differential → Half shaft →
Wheels |
|
||
|
|
Power transfer of the engine
|
Reduce the speed and increase the torque, realize reversing, and interrupt the power transmission.
|
||
|
|
Power input components
|
Clutch / Torque Converter: Transmission: Manual transmission
|
||
|
|
Power distribution components
|
Transfer case: A device unique to time-sharing 4WD vehicles that distributes power to the front and rear axles.
|
||
|
|
Power transmission components
|
The wheels ← the front axle← propeller shaft← transfer case→ propeller shaft→ rear axle → wheels
|
||
|
Body structure
|
Body material
|
The real pattern wall panel is 1.2mm thick, and the bottom plate is 1.5mm thick.
|
||
|
|
Right co-pilot
|
Single-seat armrest toolbox
|
||
|
|
Carriage form
|
Door-in-door tipping tipping dump type
|
||
|
|
Front length / mm
|
1900mm
|
||
|
|
Cargo body size / length * width * height / mm
|
2000*1300*(wall panel 500 + railing 120)mm
|
||
|
|

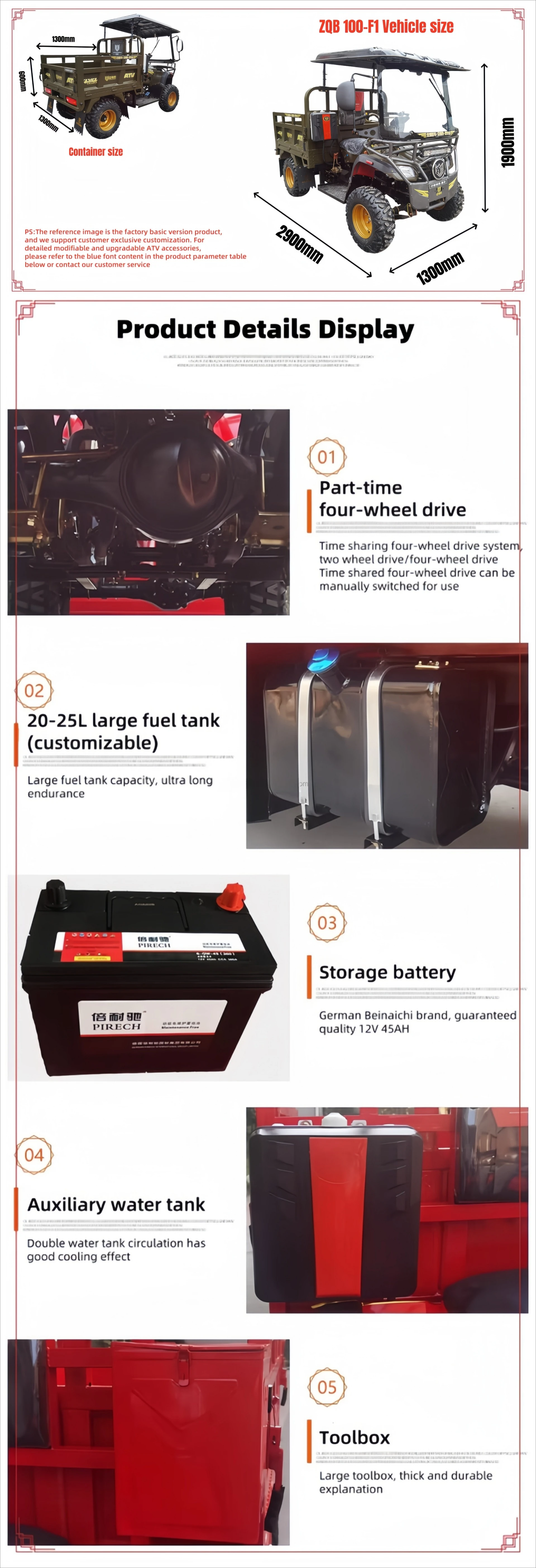

Vehicle size / length * width * height / mm
|
3900*1300*1900mm (including carport roof)
|
||
|
|
Packing size/length*width*height/mm
|
4000*1400*1150mm (dismantle wheels, carport, compartment), weight about 900kg
|
||
|
|
||||
