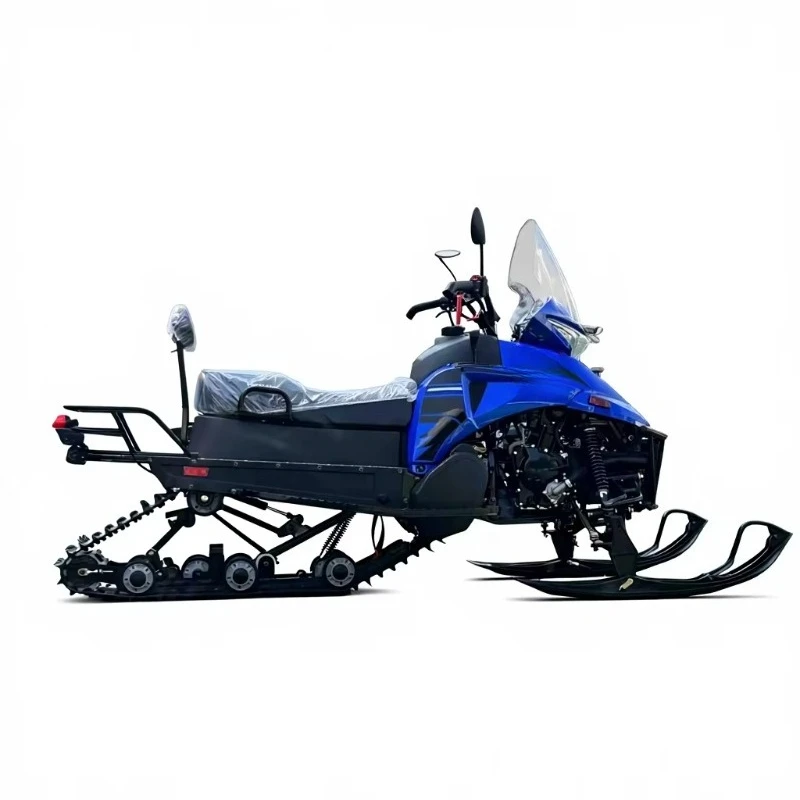

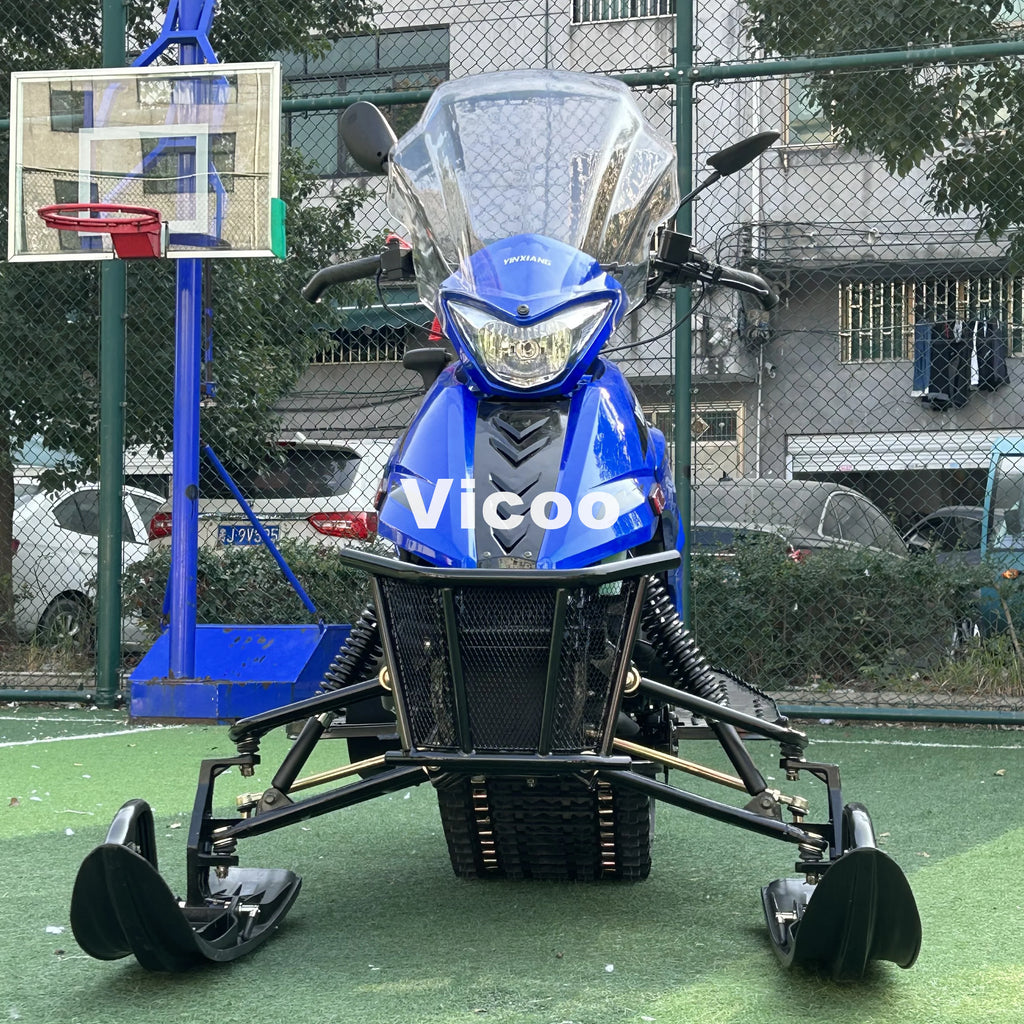

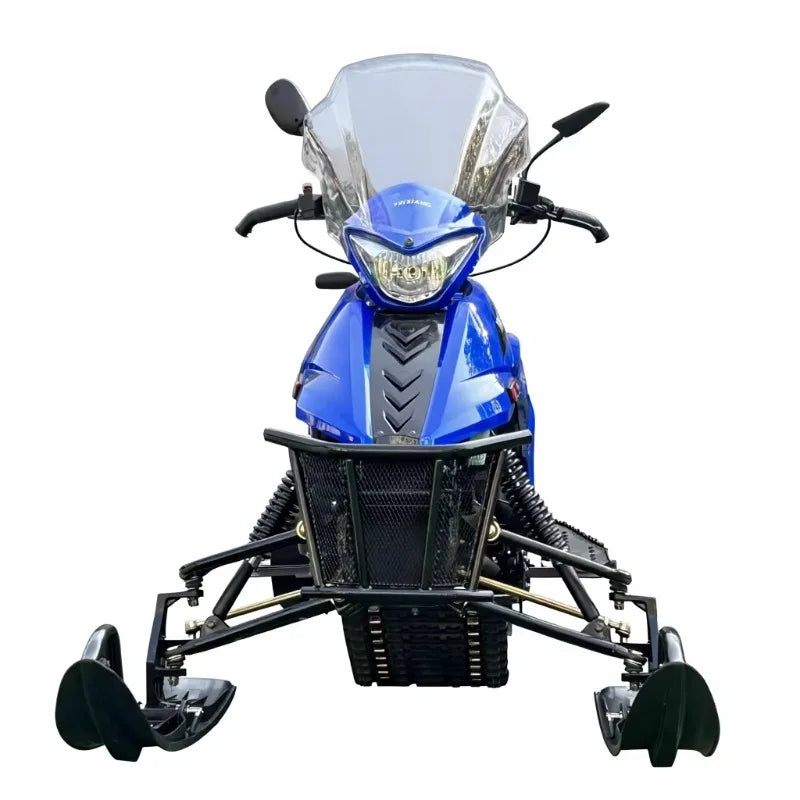

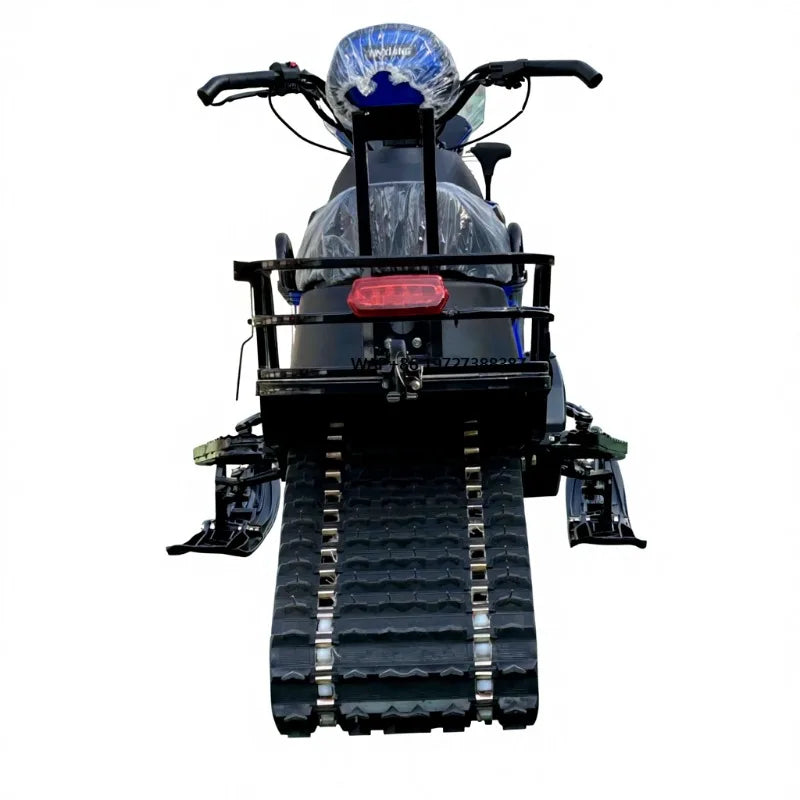

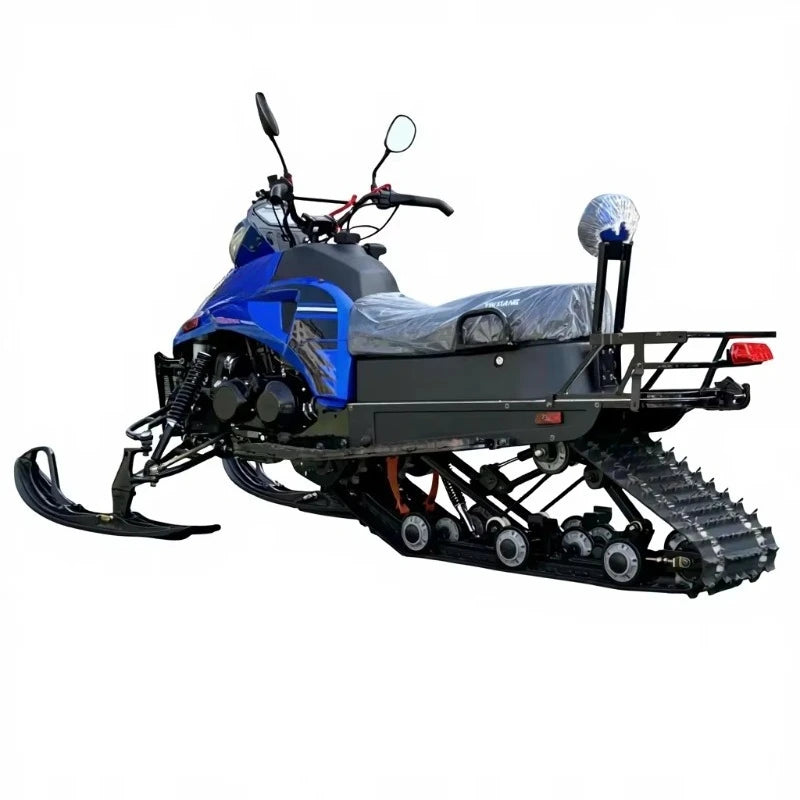

Factory Direct Sale 300cc 4WD Snow Mobile ATV Tracked Snow Vehicle Engine Balance Axle All Terrain Off-road Adult

Length x Width x Height :2620mm x 1095mm x 1390mm
Seat height: 740mm
Net weight :250kg
Front suspension system: independent double A-arm suspension system
The maximum travel of the front suspension is 85mm
Braking system hydraulic
Brake type: disc brake
Engine type: single cylinder vertical 20 °, oil cooled and water-cooled, four stroke, SOHC-4V four valve, built-in balance shaft
Maximum power :18kw/8000rpm
Maximum torque :26.50N.m/5500rpm
Compression ratio :10:01
Ignition method DC-TCI (digital inductance)
Engine displacement :299.2ml
Cylinder diameter x stroke: 75mm x 65mm
Clutch type :CVT, dry kick block centrifugal type
Transmission mode: forward/neutral/reverse
Main transmission type 530 double row chain
Starting method: electric start/manual start
Fuel type :92 # gasoline
Fuel tank capacity: 19L
The track of the front drive wheel in the propulsion mode
Track type :Enhanced rubber track
Track width: 380mm
Track length :3050mm, 61 teeth
Climbing ability: ≥ 35 °
Maximum load :240kg
Maximum speed of 50km/h (on flat snow)_
Track circumference: 3050mm
The packaging dimensions are 2.34m in length, 1.11m in width, and 1.18m in height.

The gross weight is 310 kilograms

1)Electric Vehicles:

Chassis, Motor, Battery, Controller and Charger of 1 years warranty.

2)Gas Vehicles:

Chassis and engine of 1 years warranty.

Another parts if has any problems without personal reason, you can send us pic or short video to see the main problems, we have professional engineer will help you to fix it as soon as possible.

If any problems for the future use, like you need buy spare parts, you can contact with us any time, we will send the spare parts by express.
